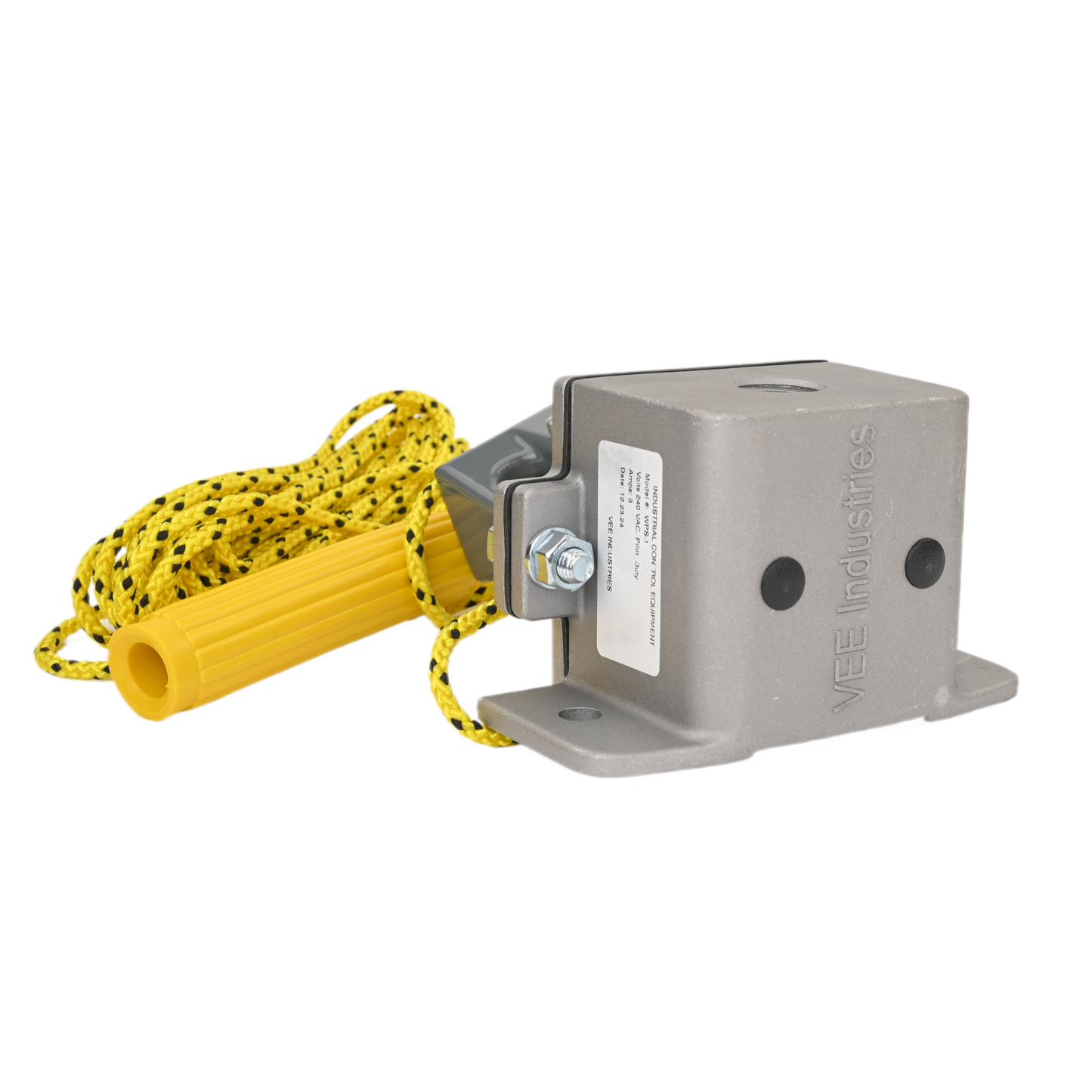

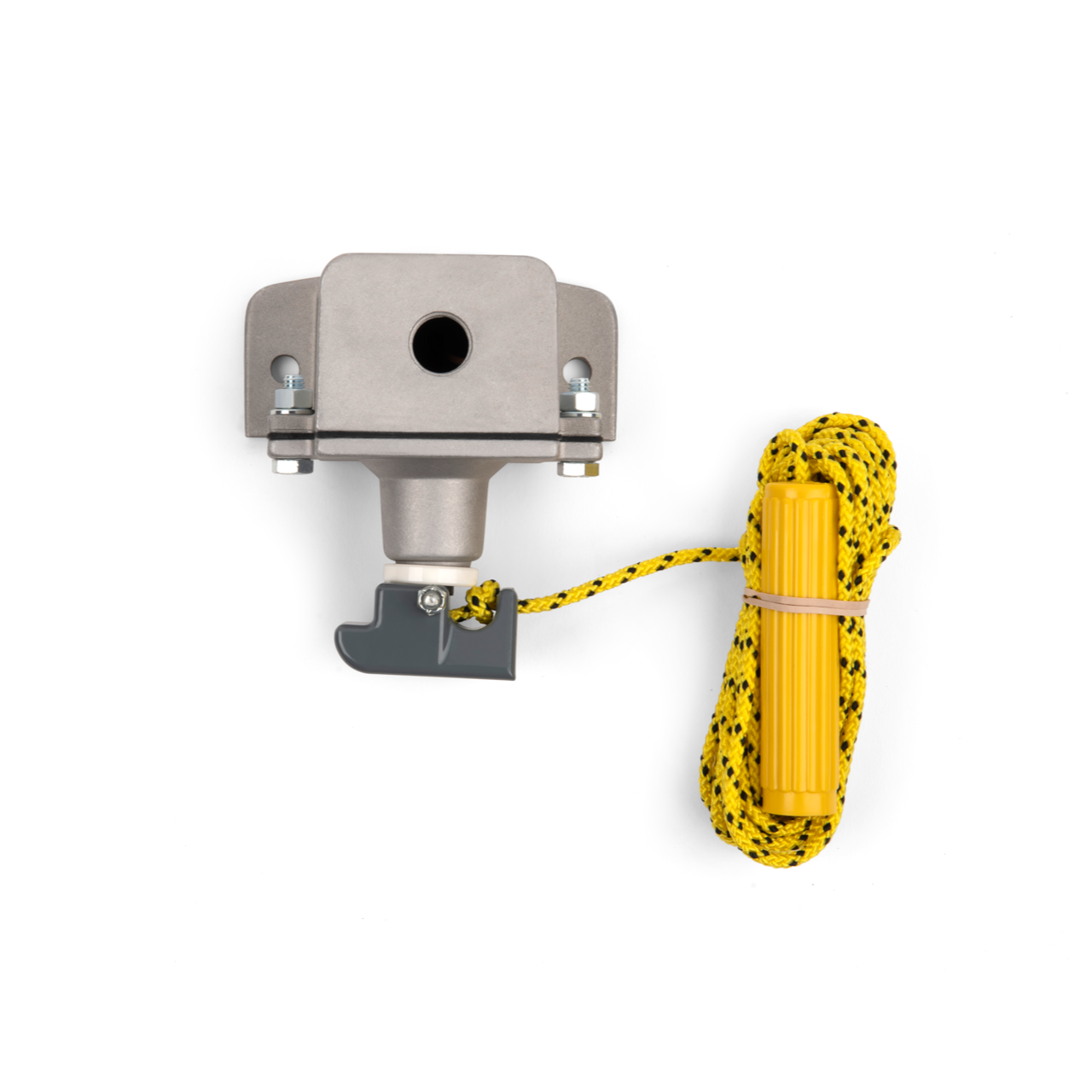

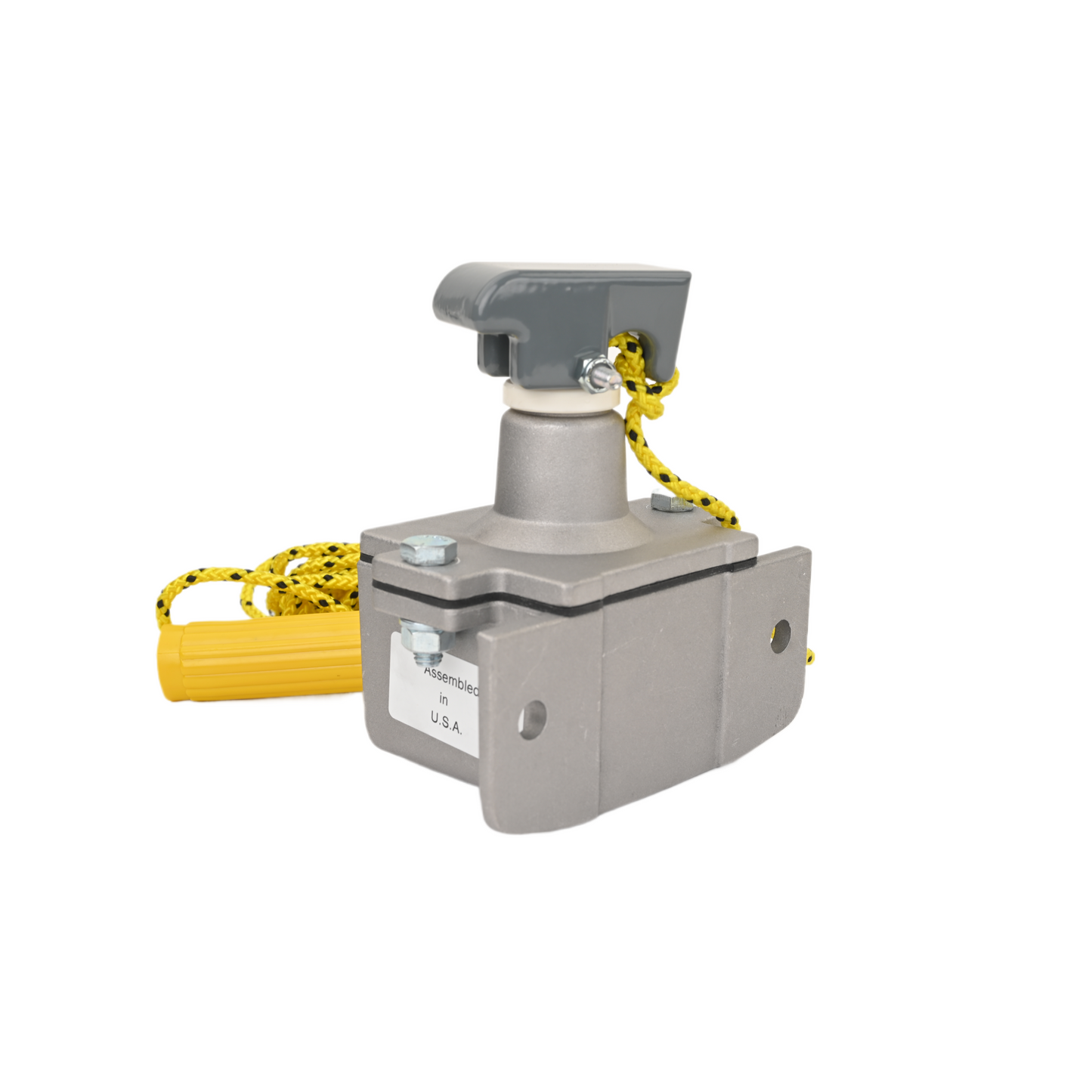

The WPS-1H 24V wall, or ceiling pull switch allows forklift operators to open a garage door effortlessly without leaving their seat—simply pull the rope for quick access. Designed for durability, it features a die-cast aluminum enclosure and a bronze sleeve bearing for smooth pull-down actuation which ensures flawless operation, and a 24-volt heater keeps it reliable in refrigerator or freezer mounted locations.
Configuration:
Momentary contact
SPST
Rated NEMA 4
Rated 3A, 240V
UL & CSA component parts
Two holes 3/8" in diameter are located on top the housing for ceiling mounting. (holes are plugged)
Materials and Features:
Cast aluminum rotating cam rotates 360° and pivots downwards 30° off vertical.
Includes 20' rope and a handle
Die cast aluminum housing
Bronze sleeve bearing
The heater, capable of operating from -40°C to 85°C, ensures that switch mobility remains unhindered by the cold.
Equipped for interior or exterior industrial applications
