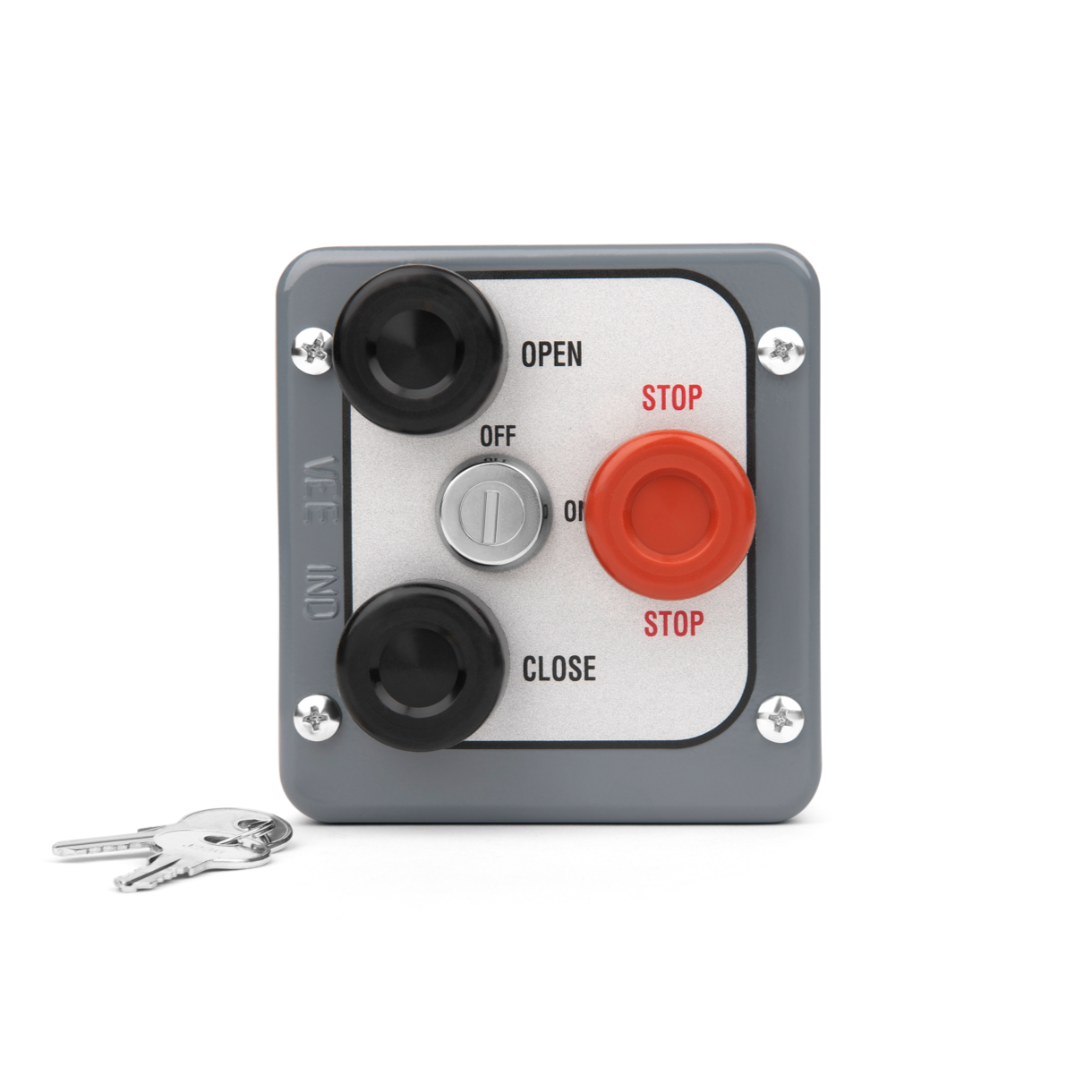

This heavy-duty exterior mounted industrial push button control station is designed for reliable operation in demanding environments. A key must be inserted to operate the control which restricts access and ensures only authorized personnel can engage the door. Featuring a durable, outdoor mountable enclosure, it provides precise control over machinery and equipment with clearly labeled buttons for Open,Close, and Stop functions.

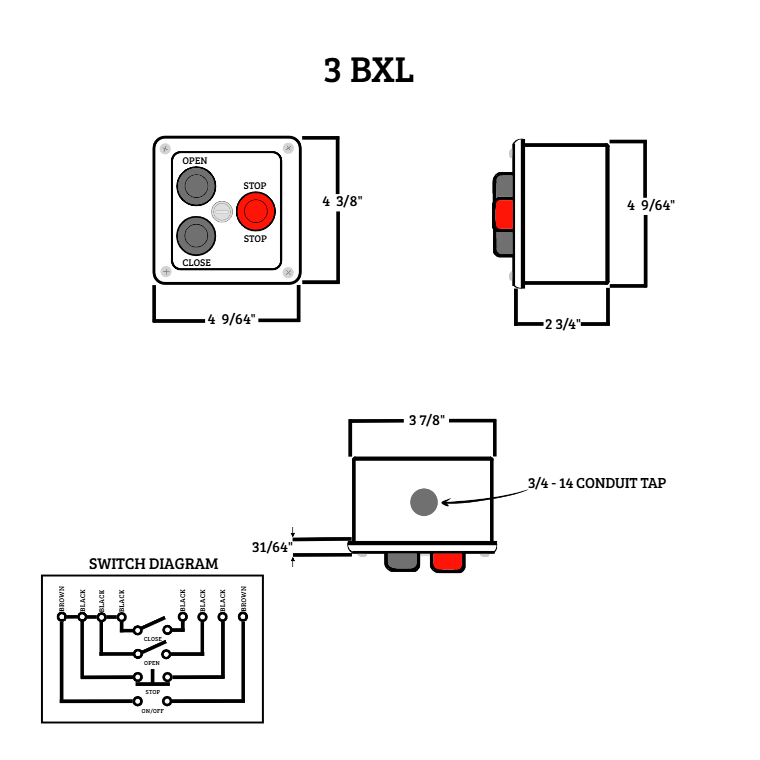

Configuration:
3 single pole, 2 N.O., 1 N.C.
One form B and two form A contacts
Momentary contact
Key activated
CUL
Rated 3 amp, 240VAC
Meets NEMA 4 requirements when installed with liquid-tight conduit.
U.L. ratings meet 1, 2, 3R 5, 6, 12, 13 and ICS NEMA standards
Equipped for interior or exterior industrial environments
